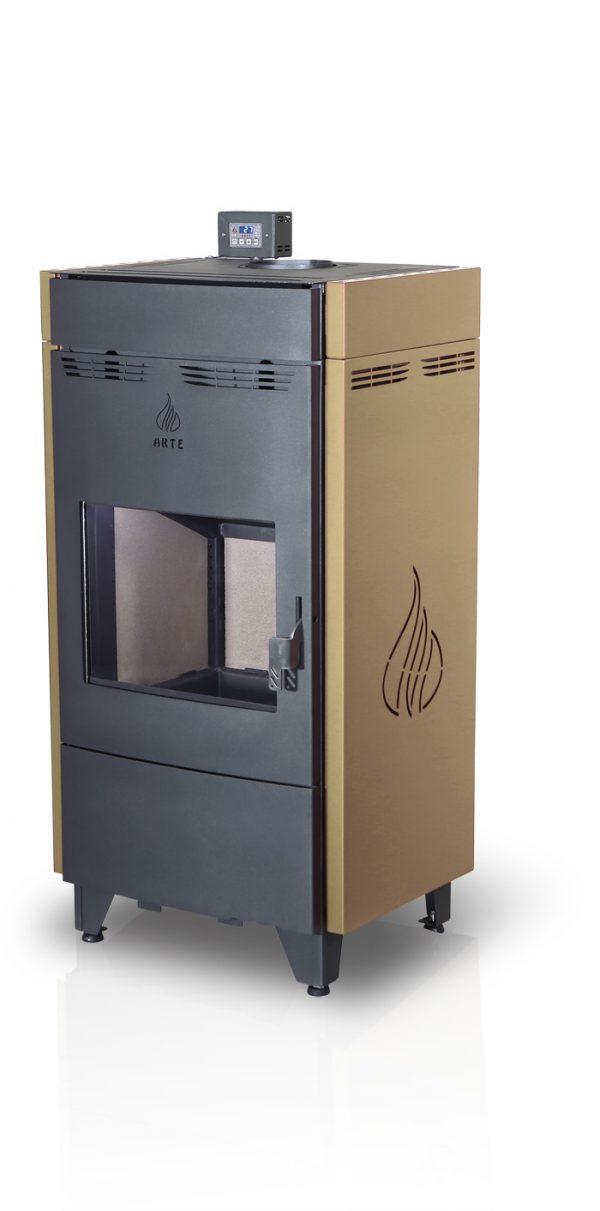

phoenix_air_kanalia_sand

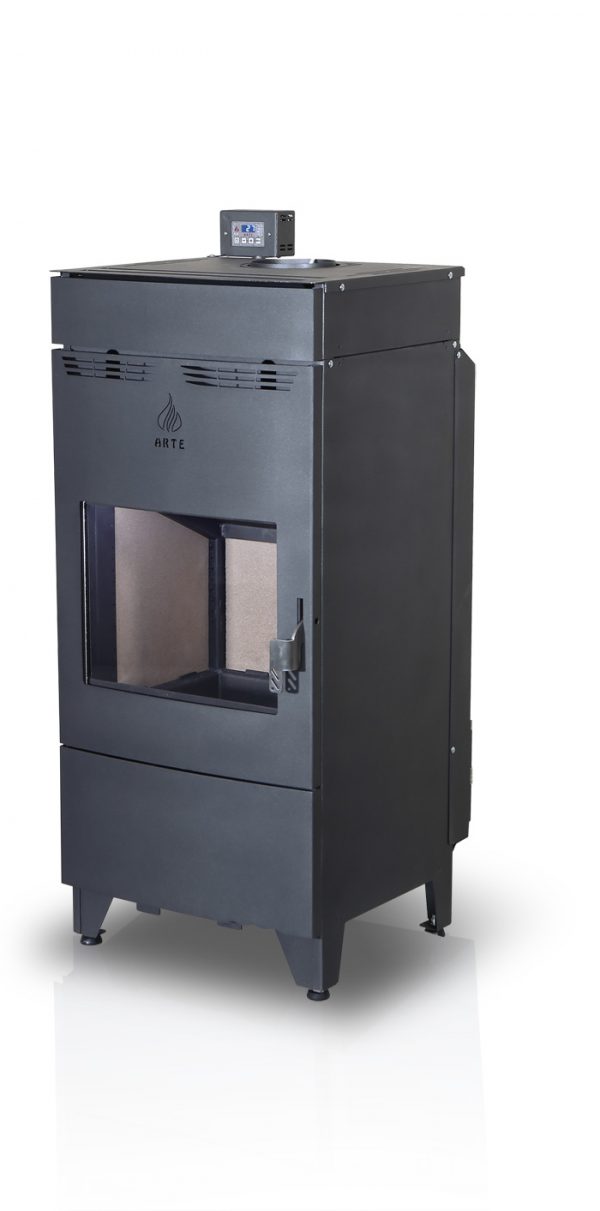

phoenix_air_kanalia_noside
Clear

Description

Multi-purpose stove which allows you to modify or alter its use depending on the requirements of your space. It may be converted from a simple wood-burning stove into a stove with an oven, with air heating, allowing air to be distributed to all spaces, with water or a stove combining all the above!

  • > Low consumption of burning material with minimal residues
  • > Large ceramic window 800oC
  • > Large fire box with vermiculite
  • > Patented burner with fully controlled tertiary combustion
  • > Sturdy construction (single piece), 2-5mm-thick metal sheet
  • > Excellent door sealing
  • > Dual-position handle for easy firing and safety
  • > Top and rear flue pipe
  • > Large riddle grate
  • > External combustion air provision available
  • > Adjustable legs
  • > The sides are optional and come in a range of colours
Manual and User Guide
DoP
Phoenix Air Phoenix Air+
Total heat output 17 kW 19 kW
Efficiency 80 % 80 %
Hourly fuel consumption 5.0 Kg/h 5.0 Kg/h
Yield range 6.1 – 20.2 kW 6.8 – 22.5 kW
Heated area 40 – 160 m2 45 – 165 m2
Energy Class Α+ Α+
CO emissions (by providing O2 at 13%) 0.159 %
Dimensions (WxDxH) 62/57/105 cm
Combustion chamber dimensions (WxDxH) 44/36/39 cm
Weight 126 Kg
Dual-position handle for easy opening
Patented burner with fully controlled tertiary combustion
Large cinder tray
Primary - secondary air adjustment (automatic primary air regulator in water)
Channel set (warm air distribution to other rooms)

All the stoves come with fire-proof gloves (ΕΝ388, ΕΝ407) and poker/lever

Hot air set
Warm air set with cleanable filter
Electronic multiple use thermostat

Fan of hot air flow: 280 m3/h
Fan speed: 10
Weight: 8 Kg
Electronic thermostat with automatic and manual function
Cleanable filters
