Description

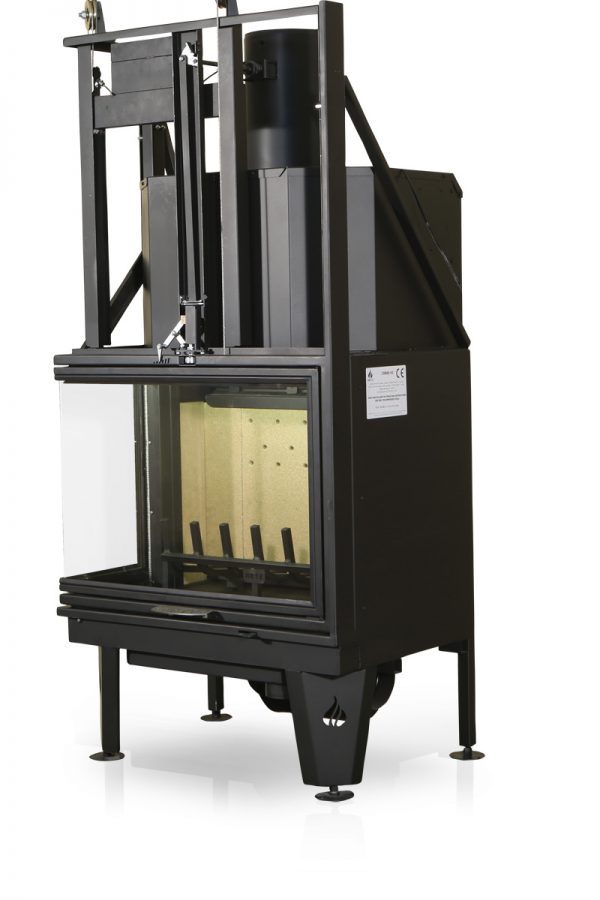

Arte energy efficient fireplaces which are manufactured in-house, of top design and efficiency and our company’s seal of quality.
- > Until four hot air outlet
- > Automatic regulator for the ventilation of exhaust gases (ARTE A.D.F. System)
- > High resistance and clearness Ceramic glass 750o C SCHOTT ROBAX ®
- > Door opening with Allen key for increased safety for children
- > Secondary combustion
- > Cast iron heating chamber (optional with vermiculite)
- > External air inlet in the combustion chamber Ø100
- > Multi-function electronic thermostat
- > Adjustable feet
| COR65/COL65 CORNERED | COR65/COL65 CORNERED+ | |
|---|---|---|
| Total heat output | 16.5 kW | 18.5 kW |
| Efficiency | 72 % | 72 % |
| Hourly fuel consumption | 5.4 Kg/h | 5.4 Kg/h |
| Yield range | 8.6 – 21.0 kW | 9.6 – 23.3 kW |
| Heated area | 60 – 160 m2 | 65 – 165 m2 |
| Energy Class | Α | Α |
| CO emissions (by providing O2 at 13%) | 0.149 % | |
| Dimensions (WxDxH) | 76/62/171 cm | |
| Combustion chamber dimensions (WxDxH) | 64/51/56 cm | |
| Weight | 206 Kg | |
Optional hot air kit
